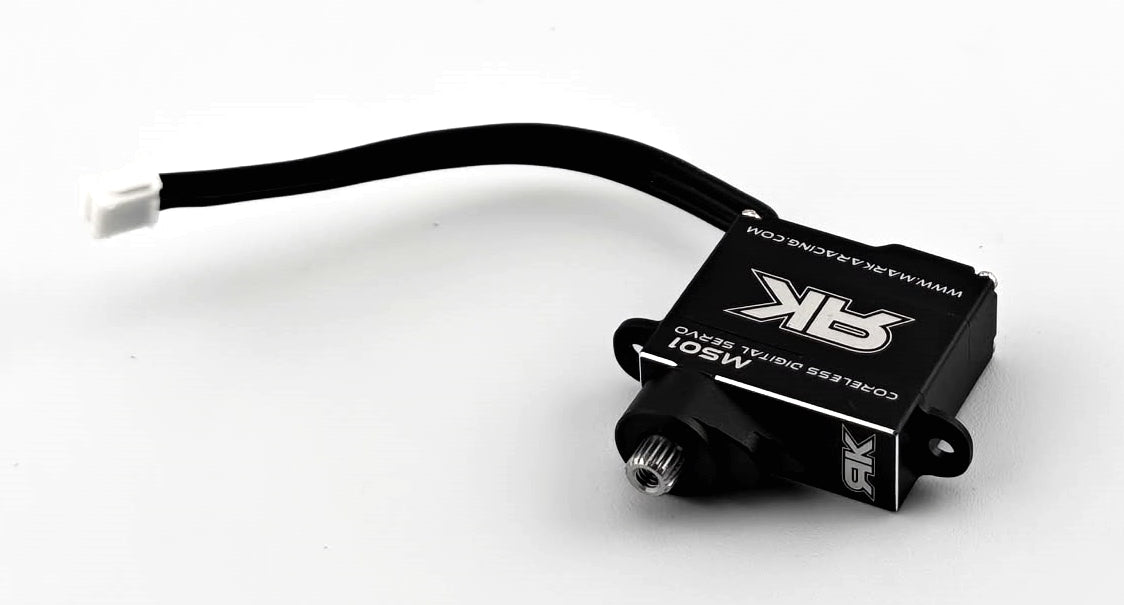

Marka Racing MRK-MS01 - 1:28 Micro Coreless Titanium Servo 0.05sec-3.0kg-cm (Black)

arka Racing MRK-MS01 servo, it is designed for Mini-z 1:28 cars and other mini scale models.
This servo not only did the body to ultra-small size, but the torque go up to 3.0kg-cm and the speed can reach 0.05sec at 8.4V. With the reliable coreless motor and titanium gear, the performance is commendable.

Feature
Coreless Motor
Titanium Gear
Cnc Aluminum Case
2S 8.4V High Voltage Compatibility

Compatible
Models: Mini-z cars
Model Scales: 1/18, 1/24, 1/27, 1/28 Scale Cars

Specification
Horn Gear Spline: 20T
Operating Voltage: 4.8-8.4V
Operating speed: 0.070sec/60°@4.8V
Operating speed: 0.065sec/60°@6.0V
Operating speed: 0.055sec /60° @ 7.4V
Operating speed: 0.050sec /60° @ 8.4V
Stall Torque: 1.8 kg-cm (25 oz-in) @4.8V
Stall Torque: 2.2 kg-cm (30 oz-in) @6.0V
Stall Torque: 2.6 kg-cm (36 oz-in) @ 7.4V
Stall Torque: 3.0 kg-cm (41 oz-in) @ 8.4V
Gear: Titanium
Motor: Coreless
Size: 20*8*17.8mm (0.78 x 0.31 x 0.70 in)
Weight: 7g
Connector Wire: JST1.5 60mm / 28AWG
